Vapor barriers are a foundational element of crawl space and basement moisture control in Denville, NJ, providing a physical membrane that separates soil-sourced moisture from the wood and mechanical systems in your home. A correctly installed vapor barrier in Denville requires the right material specification, proper seam treatment, wall coverage, and mechanical fastening to provide lasting protection against moisture migration.
Standard 6-mil poly sheeting has a relatively high vapor permeance rating, meaning it allows some moisture vapor to pass through over time, particularly as it ages and develops micro-perforations from foot traffic and environmental factors. The material specification should match the specific moisture conditions and use patterns of the space, and we assess both before recommending a product.
Overlapping sheets by 12 inches or more at seams and securing them with butyl tape creates a continuous, mechanically bonded membrane that resists separation as the sheeting settles and moves over time. We use butyl tape exclusively for seam sealing, both because of its long-term adhesion to polyethylene and its resistance to moisture and temperature cycling.
Covering only the floor and stopping the barrier at the wall-floor junction leaves the porous block or concrete foundation walls as an open pathway for moisture to enter the crawl space environment. The combination of floor coverage, properly lapped and taped seams, and full wall coverage to the sill plate creates a complete moisture envelope that dramatically reduces crawl space humidity and protects the wood framing above.
The downstream benefits of a properly installed vapor barrier extend well beyond simply keeping the crawl space dry. A well-installed vapor barrier is also a prerequisite for effective dehumidifier integration in crawl spaces where mechanical moisture extraction is warranted.
Our installers are trained on manufacturer specifications for every product we use.
We source reinforced 20-mil poly sheeting and commercial butyl tape, not the hardware store equivalent.
We extend the barrier up every wall to the sill plate, closing the moisture entry pathway that floor-only installations miss.
Our vapor barrier installations carry a written warranty covering materials and workmanship.
The result is a continuous moisture envelope that protects your floor framing from ground vapor for years to come.
Older thin-mil or damaged vapor barriers in Denville, NJ homes are common and leave crawl spaces with inadequate moisture protection.
The installation includes full seaming, perimeter taping, and wall coverage to the base of the finished wall or sill plate.

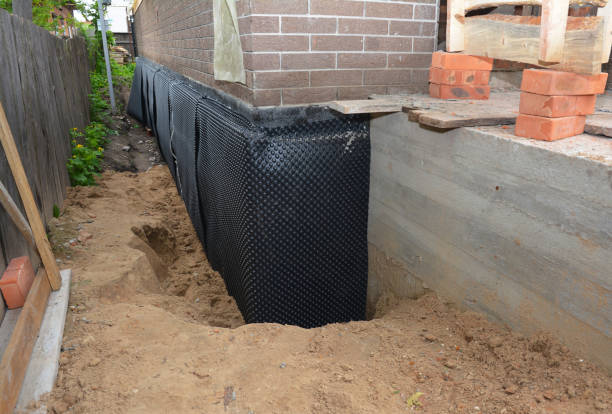

In basements with both vapor migration and liquid water management needs, we integrate dimple mat drainage board beneath the vapor barrier to channel any liquid water to a perimeter drain system.
In high-humidity areas of Denville, NJ, a vapor barrier alone may not be sufficient to control crawl space moisture during peak summer months.
Regular inspection of vapor barriers in Denville crawl spaces is recommended every several years to catch deterioration before it leads to wood rot or mold conditions.
We measure the space, assess existing moisture conditions, document any existing barrier or mold, and identify all penetrations that will need to be addressed in the installation
Based on site conditions, we specify the appropriate mil rating, calculate material quantities, and plan the seaming layout for maximum coverage and minimum waste
Sheeting is laid, overlapped at 12 inches minimum, taped with butyl tape at all seams, and extended up all walls with mechanical fastening at the top edge
We walk through the completed installation with you, confirm all seams and coverages are complete, and provide written warranty documentation before leaving
"We had a previous vapor barrier installation that was barely 6-mil and had separated seams throughout. The humidity in our crawl space was unacceptable and we were starting to see mold on the floor joists. JCB Waterproofing and Construction came in, took out the failing old barrier, and installed a proper system that actually works. The difference in our indoor air quality was noticeable within a week."
"Very professional team that explained the difference between the grades of vapor barrier sheeting before recommending anything. The 20-mil they installed is rock solid and the seams are all properly taped. We can already see the humidity meter reading dropping consistently."
"The crew extended the barrier all the way up the walls to the sill plate, which the contractor who did our original installation did not do. We had been missing that wall coverage and did not even know it. Great work from a team that clearly knows what they are doing."
Contact JCB Waterproofing and Construction for a free site evaluation and written estimate for vapor barrier installation in Denville
